Wide voltage range: 48V-265VAC/DC
Pure PC material, clear cover
With super magnetic to protect from falling down from top of cabinet or side of cabinet
Energy saving, only 4W
Integrated power unit
Long-lived and maintenance-free by LED technology
With movement sensor
With screw fixing clip holder, can change direction of light by 180 degree
With daisy chain connector
Length: 25cm
Operation Process:
When connect with city power, about 5 seconds it will be off to finish test product, when it detects the movement from people, it will make light on, when people leave away, after about 5 minutes later, it will make light off.

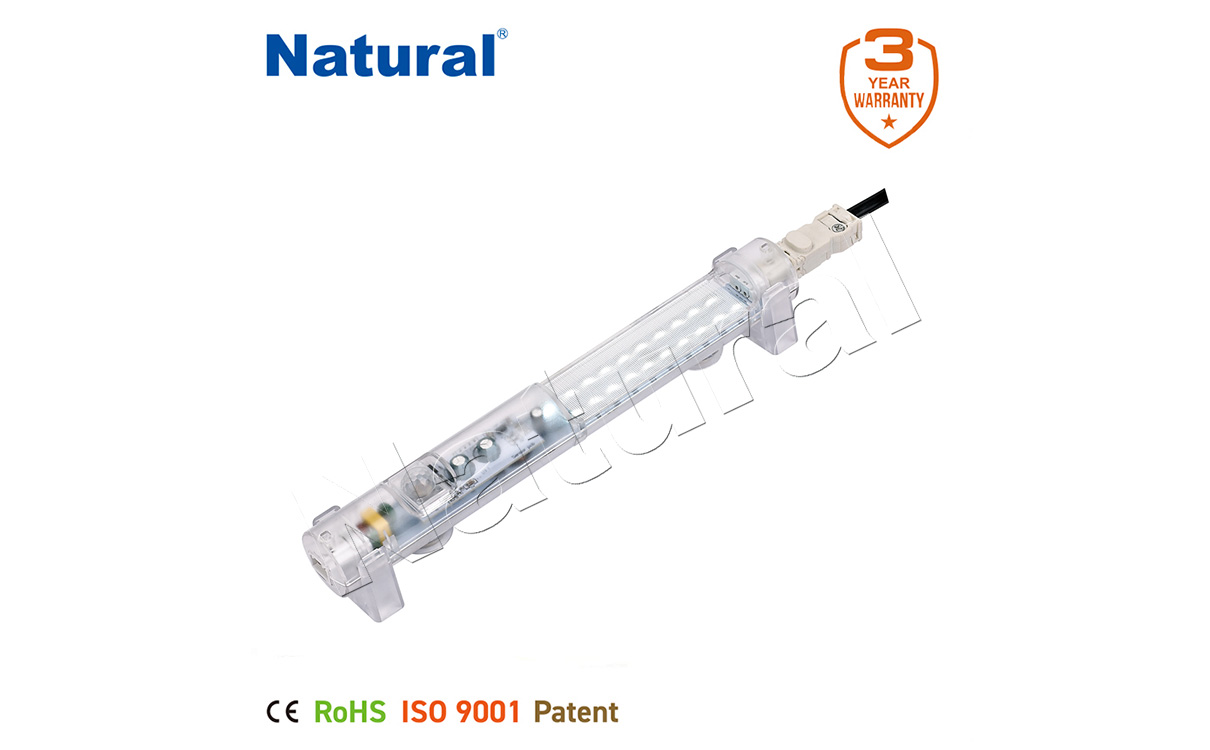

The lamp series LED 025-ESH-PIR is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 5 lamps to be connected to each other. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamp can quickly be connected.
Technical Data
LED 025-ESH-PIR | |
Power consumption | max. 3W |
Luminosity | 300Lm at 120° |
Lamp type | LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock |
Mounting | clip fixing (M6), torque 2Nm max. |
Casing | plastic, transparent |

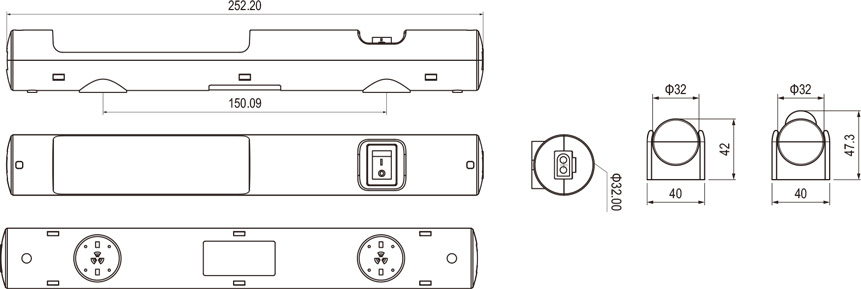

Dimensions | see drawings |
Weight | 0.2kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Mounting options: The clip holders exclusively designed for clip fixing of the LED 025-ESH-PIR can be positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turned in both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.
Note: The lamp must not be used for household lighting.
Art. No. | Fixing type | Sensor | Operating voltage |
025ESH-PIR | Screw Clip Holder Fixing | PIR Movement Sensor | 48-265VAC/DC(min. 48V, max. 265V) |
